Big Carbide-Tipped Circular Saw Blade
Item No.：YEYI-MSB 005

Description:

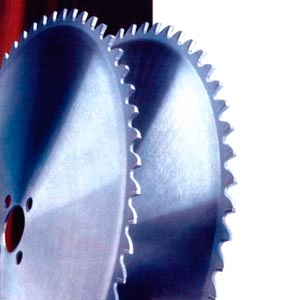

Big Carbide-Tipped Circular Saw Blade
It is a combined-type cutlery, with the carbide tips brazed on the toothholders of the alloy steel made body. It is used by Iron & Steel Plant, Steel Tube Factory, etc. for cutting sections made of carbon steel, alloy steel, cast iron, copper and aluminum, etc. in normal temperature.

No.	Diameter	Bore Hole	Diameter of Pin Hole	PCD of Pin Holes	Thickness of Blade	Cutting Width	Number of Teeth
1	Φ660	80	22	120	5.0	6.5	50,80
2	Φ830	80	27	160	5.5	7.5	70,100
3	Φ860	100	30	200	5.5	7.0	80,100
4	Φ1020	100	30	200	6.5	7.8	80,120
5	Φ1120	100	30	250	5.5	7.0	130,150
6	Φ1168	139.74	26	197	6.3	7.8	150
7	Φ1250	100	30	250	5.5	7.0	150,160
8	Φ1400	100	30	300	6.5	8	200,220
9	Φ1500	100	30	300	8	9.5	54,220
10	Φ1600	100	30	300	8	9.5	160,180
11	Φ1800	240	40	500	10	14	60,80
12	Φ2000	240	40	500	11	15	72,100
